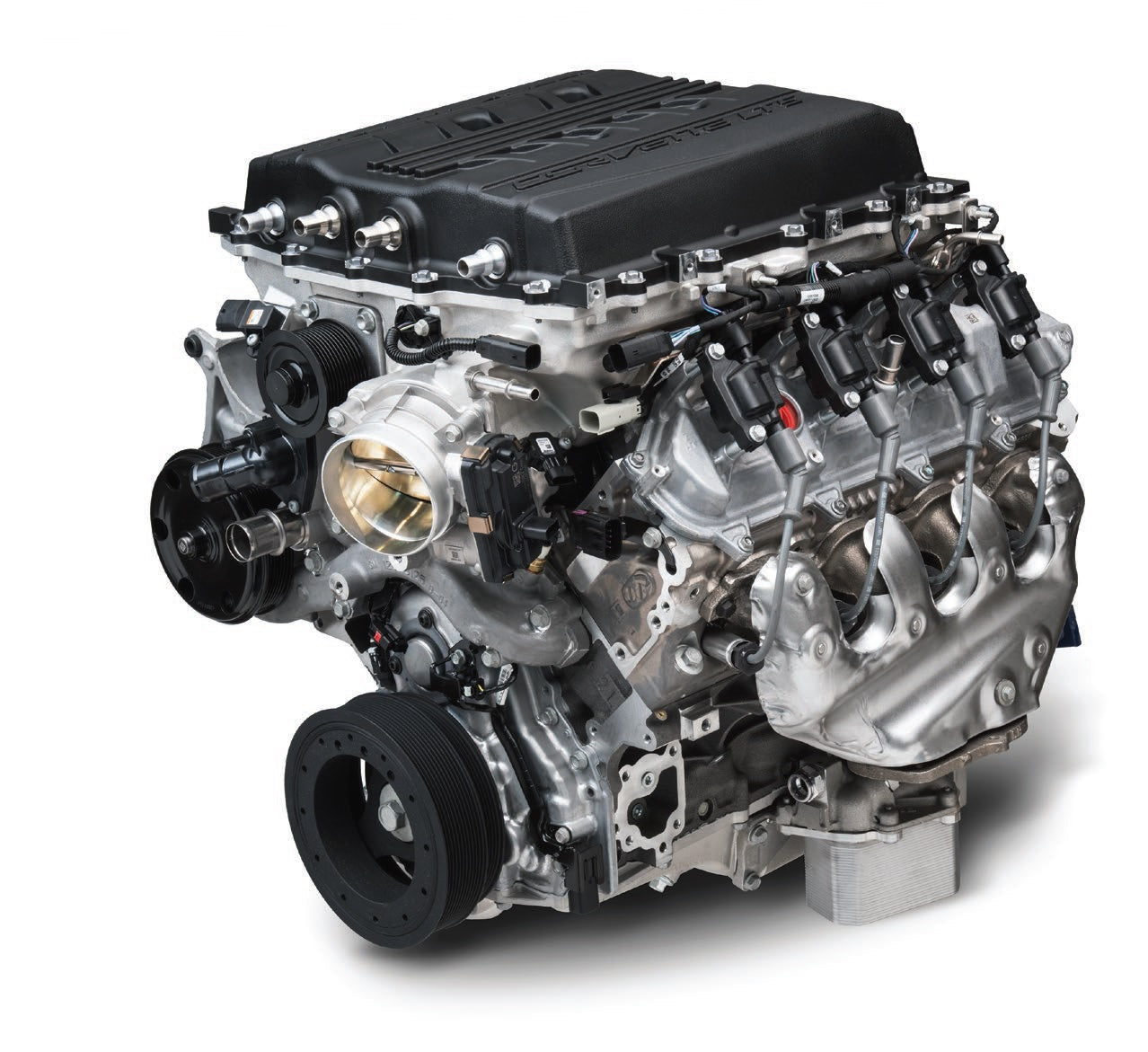

Lt5 Crate Engine 19417105 - In Stock
Lt5 Crate Engine 19417105 - In Stock
Couldn't load pickup availability
As the power behind the 2019 Corvette ZR1, the new, supercharged 6.2L LT5 represents the pinnacle of Chevrolet's performance. It is the most powerful engine ever offered in a Chevy production vehicle. The Chevrolet Performance LT5 crate engine delivers 755 horsepower and 715 lb -ft of torque. It build on the successful supercharging legacy of the LS9 and LT4 engine, with advanced technologies such as camshaft phasing and direct injection.
An all-new, 2.65-liter supercharger (64 percent larger than the LT4's supercharger) pumps outmore boost and blows into a robust charge-cooling system with about twice the capacity of the LT4's system. It's supported by a unique dual-fuel system that features eight port-style injectors, which complement the engine's standard direct-injection system. That a grand total of 16 injectors, with the auxiliary port injectors supporting the direct-injection system under heavier fuel loads such as wide-open throttle.
The LT5 also features the largest throttle body ever on an LS or LT engine, an electronically controlled bypass for the supercharger, specific heavy-duty main bearings and more. The bottom line is there's never been a more powerful production-based crate engine for Chevrolet Performance - and it's ready for your ride!
TECH SPECS
Part Number: 19417105
Tech Specs
-
Bore x Stroke (in.): 4.06 x 3.62
- Compression Ratio: 10:1
- Crankshaft: Forged steel
- Piston: Forge aluminum with polymer-coated skirts
- Cylinder Heads: Rotocast A356T6 aluminum
- Valve Size (in.): 2.13 titanium (intake) and 1.590 sodium-filled (exhaust)
- Supercharger: R2650 (2.65L)
- Supercharger Drive: 11-rib belt
- Max Boost: 14 psi
- Throttle Body: 95-mm diameter
- Fuel System: Direct injection (primary) with port injection (supplementary)
- Horsepower: 755 @ 6400 rpm
- Torque (lb.-ft) 715 @ 3600 rpm
o Assembly does not include electronics - use 19370666 LT5 controller kit to operate engine with manual transmission, 19418244 for 8L90E auto transmission
o Includes engine oil cooler
o Flywheel included
o Intended for pre-1976 street vehicles or any off-road vehicles
o Not intended for marine applications
o Crankshaft has 8-bolt flywheel mounting pattern (Same as LT1/LT4 and LSA)
o Engine includes direct injection, Multi-port injection and VVT
o Requires 72psi fuel pressure and 45 gph of fuel. In stock 05-30-23
